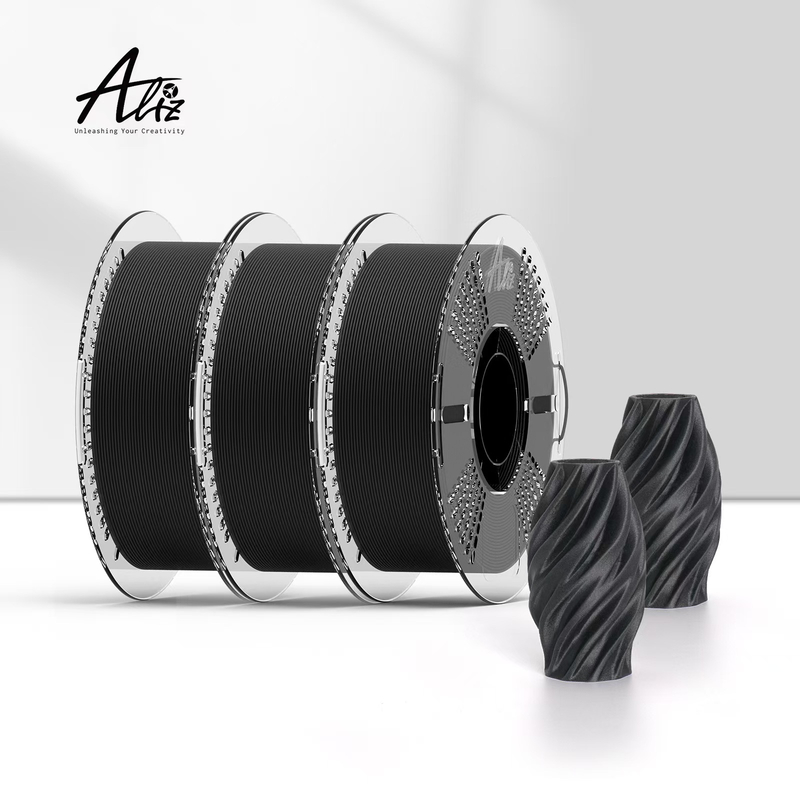

PA-CF 3D Printing Filament General Version

Share to:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
kakao sharing button
snapchat sharing button
sharethis sharing button
PA-CF General, with a carbon fiber content of 5-10%, Customization.
Features:
Low rigidity and strength
Good flexibility
Lighter weight
Better surface finish

Diameter:
Weight of each roll:
Availability:

PA-CF 3D Printing Filament is a polymer of polyamide (commonly known as Nylon) and carbon fiber. PA-CF General offers a balanced blend of enhanced mechanical properties and retained flexibility. Compared to higher-content variants, the lower carbon fiber percentage not only outperforms pure nylon in mechanical performance, but also retains sufficient flexibility for elastic and bending applications, such as clamps and connectors. A small amount of carbon fiber results in lighter weight and lower density, ideal for lightweight structures. It also provides superior surface finish, minimizing print quality issues and ensuring smoother, more aesthetically pleasing parts.


Advantages
1 -
  • Low Rigidity & Strength
    Low rigidity and strength: The addition of a small content of carbon fiber improves its rigidity and strength. Compared with pure nylon, it has better mechanical properties.
  • Good Flexibility
    Good flexibility: The low carbon fiber content allows the material maintain flexibility, perfect for applications that require a certain degree of elasticity and bending.
  • Lighter Weight
    Lighter weight: Due to the lower carbon fiber content, the overall material is less dense and lighter.
  • Better Surface Finish
    Better surface finish: Lower carbon fiber content generally makes it easier to print a smooth surface, reducing the impact of carbon fiber on surface quality.
PA-CF General is perfect for rapid prototyping and excellent for creating functional prototypes that demonstrate both appearance and functionality. It is well-suited for light structural components like drone casings and small mechanical parts, where weight reduction is crucial. Additionally, its ease of use and good printability make it ideal for educational and research projects, helping students and researchers explore carbon fiber-reinforced materials.
Applications:
1.Prototyping: Ideal for rapid prototyping, especially in situations where you need to demonstrate appearance or perform functional testing.

2.Lightweight structural parts: Perfect for structural parts that need to be lightweight and have a certain strength, such as UAV shell, small mechanical parts, etc.

3.Flexible parts: Excellent for parts that need some flexibility, such as connectors, etc.

4.Education and research: Suitable for teaching and research projects to help students and researchers understand the fundamental properties of carbon fiber reinforced materials.
PA-CF General
With a carbon fiber content of 5-10%, Customization.
PA-CF Aviation
With a carbon fiber content of
20-30%, Customization.
PA-CF Industrial
With a carbon fiber content up to 15%.

Printing Parameters

Description Data Desciption Data
Nozzle Temperature 260—290℃  Heated bed Temperature 80℃
Nozzle Diameter ≥0.4 mm Printing Platform Add glue according to Materials
Printing Speed   40-300 mm/s Cooling fan Not required
Suitable for all FDM 3D Printers / 3D Printing Machines


Physical Properties

Properties

Testing method

Value

Density

ISO 1183-1

1.19g/cm3

Melt Flow Index

ISO 1133

5.2g/10min


Thermal Performance

Properties

Testing Method

Value

Glass Transition ISO 11357 148℃
Melting Temperature ISO 11357
218℃
Decomposition Temperature / 457℃
Vicat Softening Temperature ISO 306
/

Heat Distortion Temperature

ISO 72

0.45Mpa

1.80Mpa

167.2℃

75.3℃


Mechanical Performance

Printing Direction

Testing Standard

Data

Tensile Strength

ISO 527

103.35Mpa

Elongation at break

ISO 527

1.94%

Flexural Strength

ISO 178

146.1Mpa

Flexural Modulus

ISO 178

6702Mpa

Charpy Impact Strength with Notched

ISO 179

5.66KJ/㎡

Charpy Impact Strength without Notched

ISO 179

28.57KJ/㎡












Superior Material Composition:Our PA-CF 3D Printing Filament General Version is crafted from a blend of Nylon (PA) and Carbon Fiber. This unique combination offers a perfect balance of strength, flexibility, and durability. The carbon fiber reinforcement enhances the filament’s tensile strength and rigidity, making it ideal for applications that require robust and reliable components.


Enhanced Mechanical Properties: The inclusion of carbon fiber in our PA-CF filament significantly improves its mechanical properties. It boasts high tensile strength, excellent impact resistance, and superior dimensional stability. These attributes make it suitable for applications that demand structural integrity and resistance to deformation, such as automotive parts, industrial components, and functional prototypes.


Exceptional Thermal Resistance: PA-CF filament exhibits excellent thermal resistance, making it suitable for applications exposed to elevated temperatures. It can withstand high heat without losing its mechanical properties, ensuring the longevity and functionality of your 3D printed objects. This feature is particularly advantageous in industries like aerospace and automotive, where thermal stability is crucial.


Versatile Applications:The PA-CF 3D Printing Filament General Version is highly versatile and can be used in various applications across different industries. Its exceptional strength and durability make it ideal for functional prototypes, end-use parts, and even artistic creations. Whether you’re a hobbyist, designer, or engineer, this filament opens up a world of possibilities for your 3D printing projects.


Easy to Print Despite:its advanced properties, our PA-CF filament is designed to be user-friendly and easy to print. It has a low melting point and good bed adhesion, ensuring smooth extrusion and reliable printing. With its excellent flow characteristics, you can achieve high-quality prints with minimal warping or stringing.

Wide Range of Colors and Diameters:We offer our PA-CF filament in various colors, allowing you to customize your prints and create visually appealing objects. Additionally, it is available in different diameters (typically 1.75mm and 2.85mm), ensuring compatibility with most 3D printers on the market. Whether you have a desktop 3D printer or an industrial-grade machine, our PA-CF filament is a perfect fit.


Quality Assurance:At Longshanplas, we prioritize quality. Our PA-CF filament undergoes rigorous testing and quality control processes to ensure consistent diameter, roundness, and overall performance. We adhere to national and industry standards, guaranteeing that you receive a reliable and high-quality product with every spool.


Customer Support:We understand that choosing the right filament can be overwhelming. That’s why our dedicated customer support team is always ready to assist you. Whether you have questions about printing settings, troubleshooting, or product recommendations, we are here to help. Your satisfaction is our utmost priority.
