Printing Parameters
Description | Data | Desciption | Data |
Nozzle Temperature | 190—230℃ | Heated bed Temperature | 50-60℃ |
Printing Platform Material | Soft Magnetic Sticker | Printing Platform Surface Treatment | No Processing Required |
Bottom Value Sparation Distance | 0.4-0.6 | Withdrawal Distance | 1mm |
Environment Temperature | Room temperature | Withdrawal Speed | 50mm/s |
Recommended Support Material | PVA | Drying Temperature | 50℃ |
Printing Speed | 40--250 mm/s | Cooling Fan | 100% |
Suitable for all FDM 3D Printers / 3D Printing Machines |
Physical Properties
Properties | Testing method | Value |
Density | ASTM D792 | @23℃ 1.25g/cm3 |
Melt Flow Index | ASTM D1238 | 190℃/2.16kg 9g/10min |
Flame Properties
Properties | Testing method | Value |
Flame Retardance | UL94 | @1.5mm HB |
Thermal Performance
Properties | Testing Method | Value | |
Glass Transsition | ASTM D7426 | @10℃/min 60.9℃ | |
Melting Temperature | ASTM D7426 | @10℃/min 164℃ | |
Decomposition Temperature | ASTM E2402 | @20℃/min ≥364℃ | |
Cofficient of Thermal Expansion | ASTM E831 | 101×10-06 ㎛(m· ℃) | |
Shrinking Percentage | ASTM D955 | @23℃ 0.1-0.3% | |
Vicat Softening Temperature | ASTM D1525 | 5kg,50℃/h 54℃ | |
Heat Distortion Temperature | ASTM D648 | 0.45Mpa/53℃ |
Mechanical Performance
Printing Direction | Testing Standard | Data |
Tensile Strength | ASTM D638 | @50mm/min 60.6Mpa |
Elongation at break | ASTM D638 | @50mm/min 6.3% |
Flexural Strength | ASTM D790 | @2mm/min 65Mpa |
Flexural Modulus | ASTM D790 | @2mm/min 1895Mpa |
Charpy Impact Strength with Notched | ASTM D256 | @3.2mm 33J/㎡ |
Young Modulus | ASTM D638 | @1mm/min 2760Mpa |
Chemical Resistance
Item | Grade |
Weak Acids Affect pH3-6 | Good |
Strong Acids Affect pH<3 | Poor |
Weak Base Affect pH8-10 | Good |
Strong Base Affect pH>10 | Poor |
Deionized Water | Good |
Athyl Alcohol | Average |
Acetone | Poor |
Gasoline | Good |
Ether | Good |
Printing Parameters
Description | Data | Desciption | Data |
Nozzle Temperature | 190—230℃ | Heated bed Temperature | 50-60℃ |
Printing Platform Material | Soft Magnetic Sticker | Printing Platform Surface Treatment | No Processing Required |
Bottom Value Sparation Distance | 0.4-0.6 | Withdrawal Distance | 1mm |
Environment Temperature | Room temperature | Withdrawal Speed | 50mm/s |
Recommended Support Material | PVA | Drying Temperature | 50℃ |
Printing Speed | 40--250 mm/s | Cooling Fan | 100% |
Suitable for all FDM 3D Printers / 3D Printing Machines |
Physical Properties
Properties | Testing method | Value |
Density | ASTM D792 | @23℃ 1.25g/cm3 |
Melt Flow Index | ASTM D1238 | 190℃/2.16kg 9g/10min |
Flame Properties
Properties | Testing method | Value |
Flame Retardance | UL94 | @1.5mm HB |
Thermal Performance
Properties | Testing Method | Value | |
Glass Transsition | ASTM D7426 | @10℃/min 60.9℃ | |
Melting Temperature | ASTM D7426 | @10℃/min 164℃ | |
Decomposition Temperature | ASTM E2402 | @20℃/min ≥364℃ | |
Cofficient of Thermal Expansion | ASTM E831 | 101×10-06 ㎛(m· ℃) | |
Shrinking Percentage | ASTM D955 | @23℃ 0.1-0.3% | |
Vicat Softening Temperature | ASTM D1525 | 5kg,50℃/h 54℃ | |
Heat Distortion Temperature | ASTM D648 | 0.45Mpa/53℃ |
Mechanical Performance
Printing Direction | Testing Standard | Data |
Tensile Strength | ASTM D638 | @50mm/min 60.6Mpa |
Elongation at break | ASTM D638 | @50mm/min 6.3% |
Flexural Strength | ASTM D790 | @2mm/min 65Mpa |
Flexural Modulus | ASTM D790 | @2mm/min 1895Mpa |
Charpy Impact Strength with Notched | ASTM D256 | @3.2mm 33J/㎡ |
Young Modulus | ASTM D638 | @1mm/min 2760Mpa |
Chemical Resistance
Item | Grade |
Weak Acids Affect pH3-6 | Good |
Strong Acids Affect pH<3 | Poor |
Weak Base Affect pH8-10 | Good |
Strong Base Affect pH>10 | Poor |
Deionized Water | Good |
Athyl Alcohol | Average |
Acetone | Poor |
Gasoline | Good |
Ether | Good |
Advanced CCD measurement system maintains precise 1.75mm diameter with ±0.03mm tolerance
24-hour dehydration process ensures optimal printing performance
Vacuum-sealed packaging with moisture-proof protection extends shelf life
ISO-certified production line guarantees batch consistency

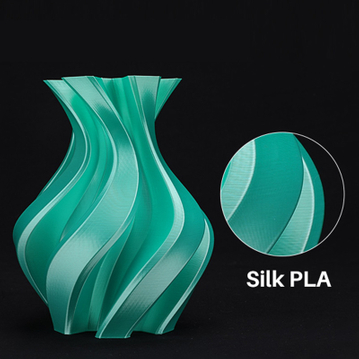

Creates silk-like luster with metallic sheen finish
Delivers smooth layer transitions without visible lines
Produces vibrant color effects without post-processing
Achieves professional surface quality at standard print speeds
Enhanced PLA formula improves mechanical properties
Biodegradable composition meets eco-friendly standards
Stable extrusion temperature range from 190-220°C
Zero toxic emissions during printing process
Rainbow gradient options create dynamic visual effects
Dual-color variations enhance model aesthetics
Multi-color options available for artistic projects
Custom color matching services for specific requirements
Excels in decorative art piece production
Perfect for jewelry prototype development
Ideal for architectural model creation
Suitable for educational project applications
Consistent flow rate prevents nozzle blockage
Enhanced layer adhesion for stable prints
Minimal warping during cooling process
Superior dimensional accuracy in finished parts
Resealable aluminum packaging preserves material quality
Included desiccant maintains optimal moisture levels
Recommended storage temperature 18-25°C
Protected from direct sunlight and humidity
Reduces post-processing requirements
Enables direct-use decorative pieces
Streamlines prototype development
Supports efficient production workflow
Advanced CCD measurement system maintains precise 1.75mm diameter with ±0.03mm tolerance
24-hour dehydration process ensures optimal printing performance
Vacuum-sealed packaging with moisture-proof protection extends shelf life
ISO-certified production line guarantees batch consistency
Creates silk-like luster with metallic sheen finish
Delivers smooth layer transitions without visible lines
Produces vibrant color effects without post-processing
Achieves professional surface quality at standard print speeds
Enhanced PLA formula improves mechanical properties
Biodegradable composition meets eco-friendly standards
Stable extrusion temperature range from 190-220°C
Zero toxic emissions during printing process
Rainbow gradient options create dynamic visual effects
Dual-color variations enhance model aesthetics
Multi-color options available for artistic projects
Custom color matching services for specific requirements
Excels in decorative art piece production
Perfect for jewelry prototype development
Ideal for architectural model creation
Suitable for educational project applications
Consistent flow rate prevents nozzle blockage
Enhanced layer adhesion for stable prints
Minimal warping during cooling process
Superior dimensional accuracy in finished parts
Resealable aluminum packaging preserves material quality
Included desiccant maintains optimal moisture levels
Recommended storage temperature 18-25°C
Protected from direct sunlight and humidity
Reduces post-processing requirements
Enables direct-use decorative pieces
Streamlines prototype development
Supports efficient production workflow
A1: The recommended printing settings for PLA Silk filament are:
Extruder Temperature: 190-220°C
Bed Temperature: 50-70°C
Printing Speed: 30-60 mm/s These settings may vary slightly depending on your specific 3D printer model and the brand of PLA Silk filament used.
A2: Yes, PLA Silk filament is compatible with most 3D printers that support PLA filaments. Ensure that your printer can handle the specific diameter of the filament you choose.
A3: Yes, PLA Silk filament is eco-friendly. It is made from renewable resources, primarily corn starch, and is biodegradable under the right conditions. This makes it a sustainable choice for 3D printing.
A4: PLA Silk filament offers a unique aesthetic with its silk gloss finish. It prints similarly to standard PLA but provides a higher-end look for your 3D prints. It also retains the ease of use and lower printing temperatures associated with PLA.
A5: PLA Silk filament is not recommended for outdoor applications. PLA is sensitive to UV light and can degrade over time when exposed to sunlight. For outdoor use, consider using a more durable filament like PETG or ABS.
A6: PLA Silk filament should be stored in a cool, dry place away from direct sunlight. It is also advisable to use airtight containers or vacuum-sealed bags to prevent moisture absorption, which can affect the filament’s quality.
A7: While PLA Silk filament is biodegradable, it is not typically recycled in the same way as other plastics. However, it can be ground up and re-extruded into new filament, reducing waste.
A8: PLA Silk filament is generally considered food-safe as it is made from non-toxic materials. However, it is important to note that the printing process and any additives in the filament can affect its safety for food contact. Always check the manufacturer’s specifications for food-safe applications.
A9: PLA Silk 3D prints can be cleaned with mild soap and water. Avoid using harsh chemicals or abrasive materials that could damage the glossy finish.
A10: You can purchase PLA Silk 3D printer filament from reputable online retailers or directly from manufacturers like Longshan Plas. Always ensure that you are buying from a trusted source to guarantee the quality of the filament.
By understanding the properties and applications of PLA Silk 3D printer filament, you can make informed decisions about its usage in your 3D printing projects. Its unique aesthetic and ease of use make it a popular choice for a wide range of applications, from hobbyist printing to professional prototyping.
